1. Standard Definition & Scope
ASTM A213/A213M is the core specification covering seamless ferritic alloy, martensitic alloy, and austenitic stainless steel tubes manufactured for high-temperature power equipment, including boilers, superheaters, reheaters, and heat exchangers. It includes dozens of standard grades categorized into three major material families: carbon-moly/chrome-moly ferritic alloys (T12, T22, T91, T92), martensitic high-chrome alloys (T5, T9), and austenitic stainless steels (TP304, TP316, TP321, TP347). Tubes are produced as hot-finished or cold-drawn seamless hollow tubes for elevated temperature pressure-bearing service.
2. Standard Dimension Specifications
2.1 Size Range
- Outside Diameter (OD): 12.7 mm ~ 203.2 mm (0.5 in – 8 in)
- Wall Thickness (WT): Minimum wall or nominal wall, ranging from 1.25 mm up to 25 mm
- Fixed standard lengths: Random mill lengths (4–12 m), fixed cut lengths, or U-bent custom lengths for heat exchangers
2.2 Tolerance Standards
- OD tolerance: ±0.8% for cold-drawn tubes; ±1% for hot-finished tubes
- Wall thickness tolerance: -12.5% minimum wall limit, +15% upper deviation
- Straightness, ovality, and end flatness are strictly controlled for tube rolling, expanding and bending fabrication
2.3 End Forms
Plain cut ends (standard), beveled ends for welding, or capped finished ends for export packaging

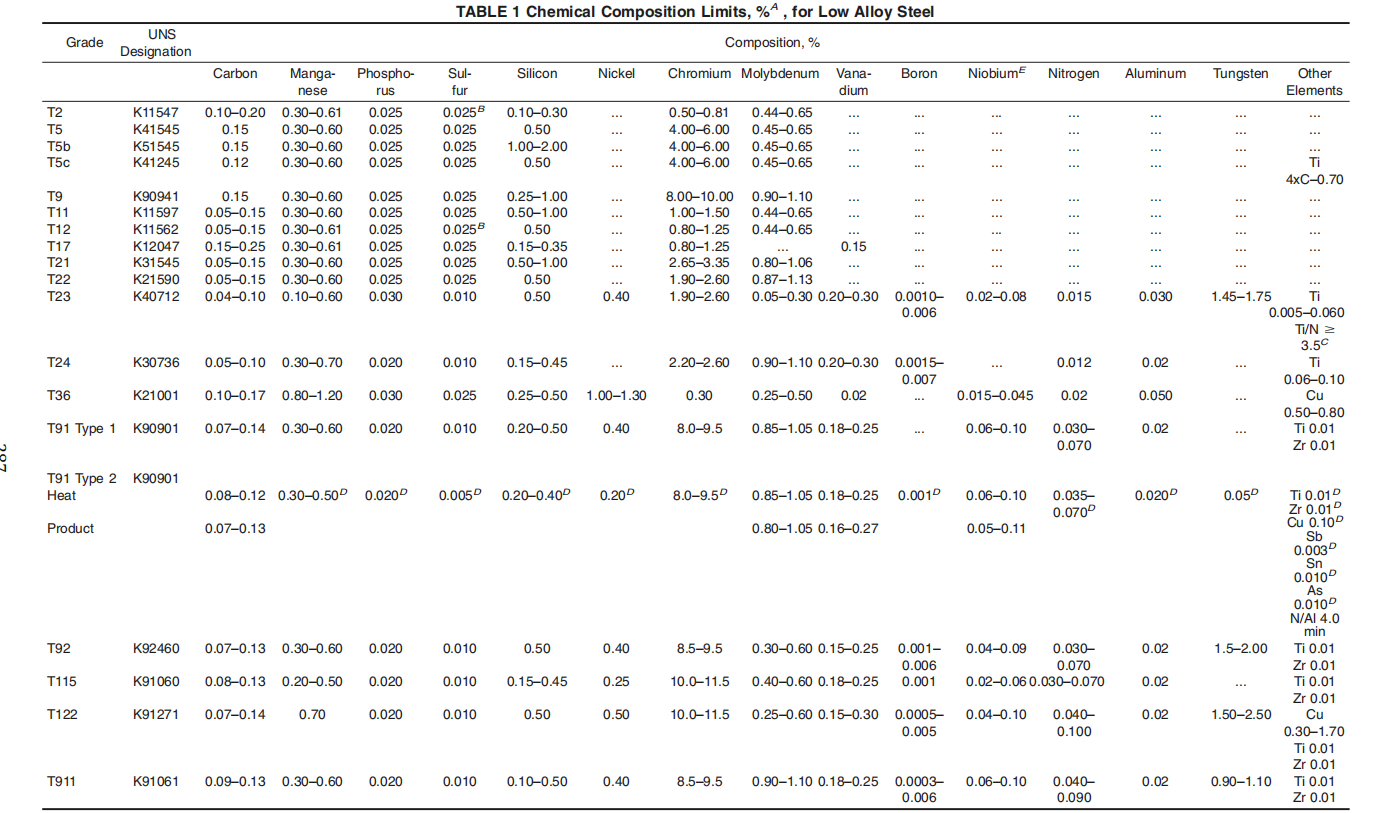

3. Chemical Composition Core Parameters
Each grade has strictly limited elemental content to guarantee high-temperature performance:
- Ferritic alloy grades (T12, T22, T91): Controlled C, Si, Mn, Cr, Mo, trace V/Nb for creep resistance
- Martensitic grades (T5, T9): High chromium (4–9% Cr) for oxidation resistance
- Austenitic stainless grades (TP321, TP347): Ti/Nb stabilization to avoid intergranular corrosion under long-term high heat
All batches require heat analysis and product check to comply with ASTM specified chemical limits.
4. Mechanical Property Parameters (Room & Elevated Temperature)
4.1 Room-Temperature Mandatory Index
| Property | Ferritic Alloy Tubes | Austenitic Stainless Tubes |
|---|
| Minimum Tensile Strength | 415 MPa (60 ksi) | 485 MPa (70 ksi) |
| Minimum Yield Strength | 205 MPa (30 ksi) | 170 MPa (25 ksi) |
| Minimum Elongation | 30% | 35% |
| Hardness Limit | ≤225 HB for T22/T91 | ≤200 HB for TP304/TP316 |
4.2 High-Temperature Key Performance
- Creep rupture strength: T91/T92 superalloy grades maintain stable long-term strength above 580°C, suitable for ultra-supercritical power units
- Thermal expansion: Ferritic alloys have lower expansion rates than austenitic stainless steel to reduce thermal cycling deformation
- Thermal conductivity: Alloy carbon grades deliver better heat transfer efficiency than stainless steel
5. Metallurgical & Corrosion Performance
- Heat treatment requirements
- Ferritic/martensitic tubes: Normalized + tempered heat treatment to form stable tempered martensite microstructure
- Austenitic stainless tubes: Solution annealing at 1050–1120°C followed by rapid cooling to form full austenite
- Corrosion resistance
- Cr-Mo alloys: Resist high-temperature steam oxidation and mild sulfide corrosion
- Stabilized stainless grades (TP321, TP347): Resist intergranular corrosion after welding and long-time heating
- Limitation: Standard T-series alloy tubes cannot withstand heavy chloride corrosion media
6. Mandatory Factory Test Specifications
All ASTM A213 tubes must pass full batch inspection per standard rules:
- Tensile test, hardness test, and flattening/flaring forming test for ductility verification
- Hydrostatic test: Internal water pressure test with no leakage; alternative air pressure test allowed
- Non-destructive testing: Ultrasonic (UT) or eddy current (ET) inspection to detect wall thinning, cracks, lamination defects
- Microstructure check and intergranular corrosion test for stainless TP grades
7. Main Application Scenarios
- Thermal power plants: Boiler water wall tubes, superheater & reheater coils, header connecting tubes
- Ultra-supercritical generating units: T91/T92 alloy tubes for high-temperature main heating circuits
- Industrial boilers & waste heat recovery furnaces
- Petrochemical high-temperature heat exchangers and process furnace coils
- Steam pipeline coils under medium-to-extreme high temperature and pressure
8. Summary Paragraph
ASTM A213 seamless tubes cover a complete series of ferritic alloy, martensitic alloy and austenitic stainless seamless tubing with standardized OD, wall thickness and length specifications under tight dimensional tolerances. Controlled chemical formulas and standardized heat treatments deliver precise mechanical indexes including tensile strength, yield strength and ductility, as well as outstanding high-temperature creep resistance and anti-oxidation performance. Every production batch undergoes mandatory tensile, hydrostatic and non-destructive defect inspection to guarantee service safety. Widely adopted for boiler water walls, superheaters, reheaters and high-temperature heat exchangers in thermal power stations and petrochemical plants, ASTM A213 tubing is the global standard pressure-bearing heat transfer material for long-term operation under severe high temperature and pressure working conditions.
